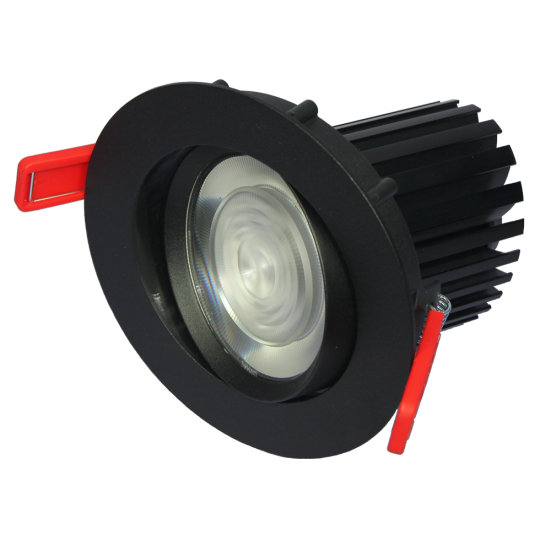

ACCENT GIMBAL 90
Product Features
- LED Module-design
- Unique Heat-sinking design
- Elegant appearance with coating
- Angle of illumination can be adjusted
- World-wide branded LED in high performance
- COB／LED-high reflection and w／o ghosting image
- Low down the running cost
- Applications: offices,shops,residences,hotels…
- Tailored production
- Made in Taiwan
| Product NO. | TM-A20003-90 | |
|---|---|---|
| LED Element | CREE (USA) / COB | LUMINUS / COB |
| Light Color | Warm white / Ice white | Warm white / Ice white |
| CRI | ＞Ra 80 | ＞Ra 81 |
| Color Temperature (K) | 3000 K / 5000 K | 3000 K / 5000 K |
| Rated Lumen Flux (Lm) | 1749 Lm | 3214 Lm |
| Power Comsumption (W) | 19 W | 24.6 W |
| Input Voltage (V) | AC 100~240 V | AC 100~240 V |
| Output Current (mA) | 500 mA | 720 mA |
| Power Efficiency (Lm/W) | 91.6 Lm/W | 130.5 Lm/W |
| Rotation Angle Range | Left & Right-25° | |
| Irradiation Direction | 350° | |
| Material | Body / Ring：Alum.Die-casting Inner ring：PC | |
| Ceiling Cut-out (mm) | Ø140 mm | |
| Fixture Color Available | Black / White / Silver | |
| Weight (Kg) | 0.8 Kg | |
| Warranty | 3 years | |
| Application | In-door lighting | |
